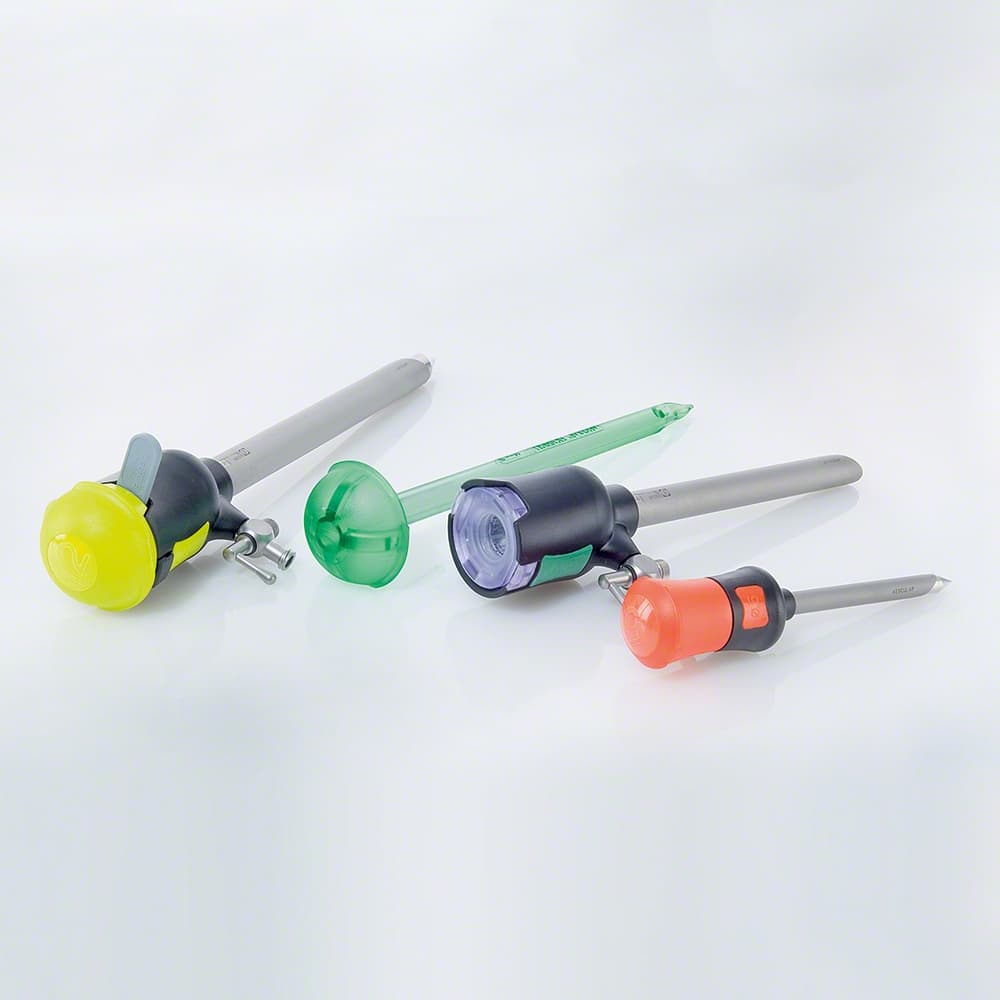

Reposable Trocar System

A combination of single and multiple-use components

The Trocar system combines the handling advantages of disposables with the economic benefits of a reusable system.

Seals

• Two integrated tear-resistant sealing systems to preserve the pneuroperitoneum.
• Problem-free suture application or removal of resected material.
• Reduced friction for instrument protection.
• Single-handed instrument change.

Universal seal

• No adaptors or reducing sleeves required - suitable for all 2 - 12 mm diameter instruments.
• Floating head for precise alignment of the cap with the trocar lumen according to the instrument diameter used.
• Bayonet connector for simple adaptation.
• The same seal can be used for 11 mm and 12 mm diameter trocars.
• Stopcock integrated.
• We recommend that this sealing be used with instruments and electrodes.

Premium seal

• The same seal can be used for 11 mm and 12 mm diameter trocars.
• 5 mm adaptor for spontaneous conversion from endoscopic access to working trocar.
• Bayonet connector for simple adaptation.
• Stopcock integrated.
• We recommend that this sealing be used with the endoscope.

5 mm diameter seal

• Two options - with or without stopcock
• Bayonet connector for simple adaptation

Trocar sleeves

• Stainless steel for long life.
• Made from one piece - no moving parts, no welds.
• Easy to clean and sterilise.
• Matt surface reduces dazzle.
• Optional threaded surface for improved grip during instrument manipulation.
• Chamfered tip for easy and gentle insertion of the trocar body.

Disposable obturators

• Various geometries, allwith protective mechanism.
• Visible indicator on the head of the obturator shows whether the protective mechanism is active.
• Very little force required to introduce the obturator.
• Protective mechanism facilitates precise positioning of the cutting edges for the abdominal incision.

Re-usable obturators

• With triangular tip.
• Blunt obturator for mini-laparotomy (Hasson trocar).

Stabilising cone

• For use with the blunt obturator in mini-laparotomy procedures.
• Can be used with 11 / 12 mm diameter trocar sleeves.
• Reduces intraoperative CO2 leaks.
• Conductive material avoids capacity effects when using electrosurgery.
• Insufflation needle / Veress cannula
• Single-use - always sharp, no cleaning problems.
• Available in two lengths: 120 mm / 150 mm
• Coloured safety ring provides visual check when penetrating the abdominal wall.
• Audible click on penetration of the abdominal wall as an additional safety feature.
