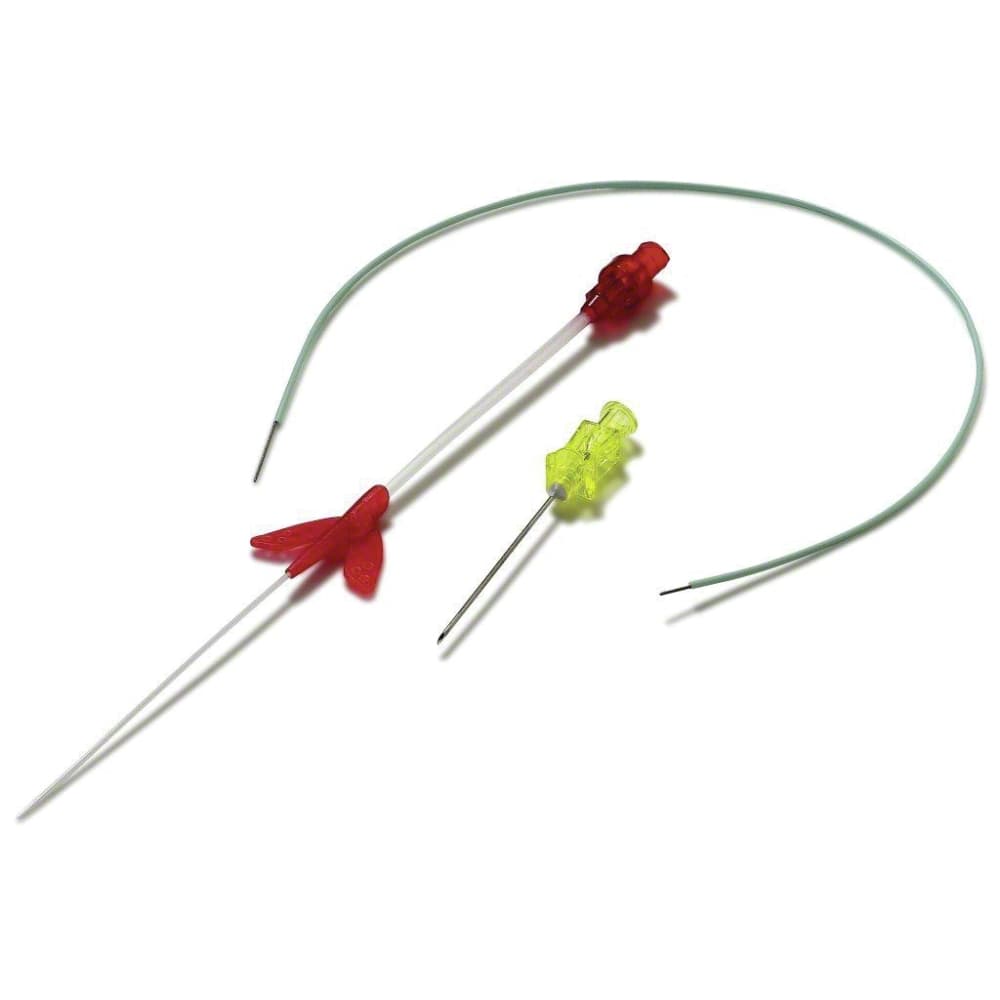

Arteriofix
Arterial catheter kit for invasive monitoring of blood pressure and blood
sampling using the Seldinger technique.
Introducer needle made of stainless steel
- Smoothly tapered hub transition for easy insertion of guide wire
- Integrated design, providing smooth transition from guide wire to needle and needle to catheter to ensure minimal trauma at puncture site
- Luer lock fitting
Catheter made of FEP
- For pressure transmission and good physical and mechanical properties of the material
- Excellent tissue and blood compatibility
- Smooth surface prevents thrombogenesis
- Special tip for easy insertion
- FEP catheters have good gliding characteristics during insertion
- Fixation wings at proximal end
- Colour-coded Luer lock-fittings
Guide wire made of stainless steel
- Flexible straight tip
- Designed according to the different inner diameters of catheters
Arteriofix V
This new version of Arteriofix® convinces with its outstanding new
features and with established components.
Capillary
- Made of FEP
- Excellent tissue and blood compatibility
- Smooth surface prevents thrombogenesis
- Special tip for easy insertion
- Outstanding gliding characteristics during insertion
Fixation wings
- Wings made of PUR
- Soft wings adapt easily to the skin
- Three suture holes
- Continuous and smooth transition between wings and capillary
Connecting tubing
- 7 cm long PUR tubing
- Distance between puncture site and the connection area
- Strain relief at the puncture site during connection
Valve
- Avoids blood reflux and facilitates the handling
- Provides a high leak tightness
- Does not affect the pressure measurement results
Introducer needle made of stainless steel
- Smoothly tapered hub transition for easy insertion of guide wire
- Integrated design, providing smooth transition from guide wire to needle and needle to catheter to ensure minimal trauma at puncture site
- Luer Lock fitting
Guide wire made of stainless steel
- Flexible straight tip
- Designed according to the different inner diameters of catheters
