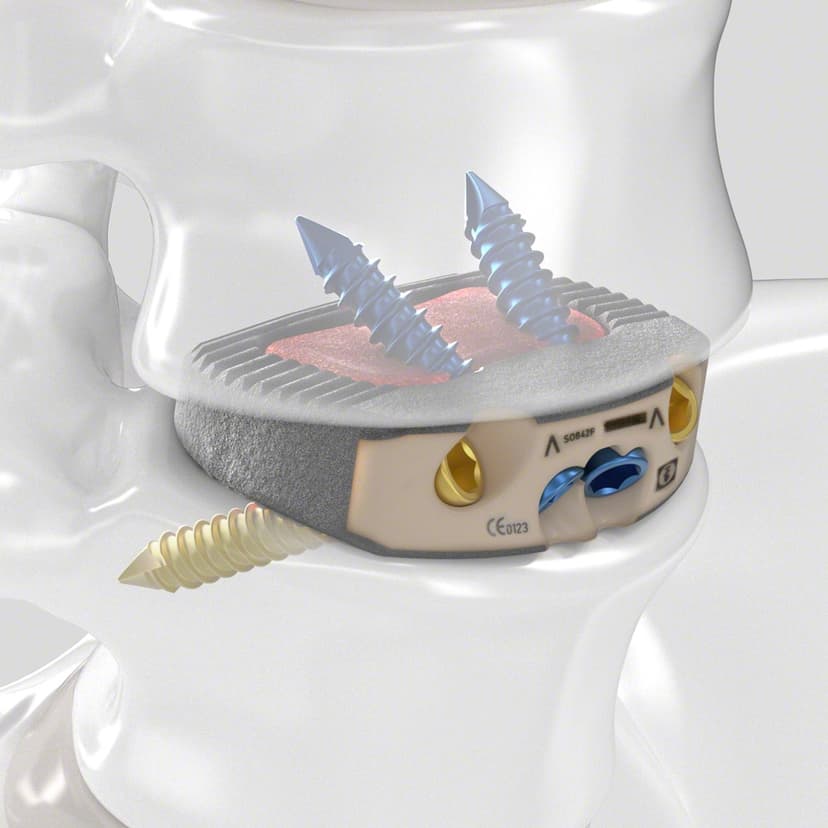

The ArcadiusXP L® Interbody Fusion System is a stand-alone device intended to be used with four bone screws if no supplement fixation is used to stabilize the lumbar spine through an anterior approach.
ArcadiusXP L® combines high primary and secondary stability [1, 2] and improved imaging properties [3]. PLASMAPOREXP® osteoconductive coating was developed to promote implant stability and bony ingrowth [1, 2].
Implant design and flexible instrumentation allow an accessibility from a wide range of angles for instrumentation and hence provide ease in screw insertion.
System Features

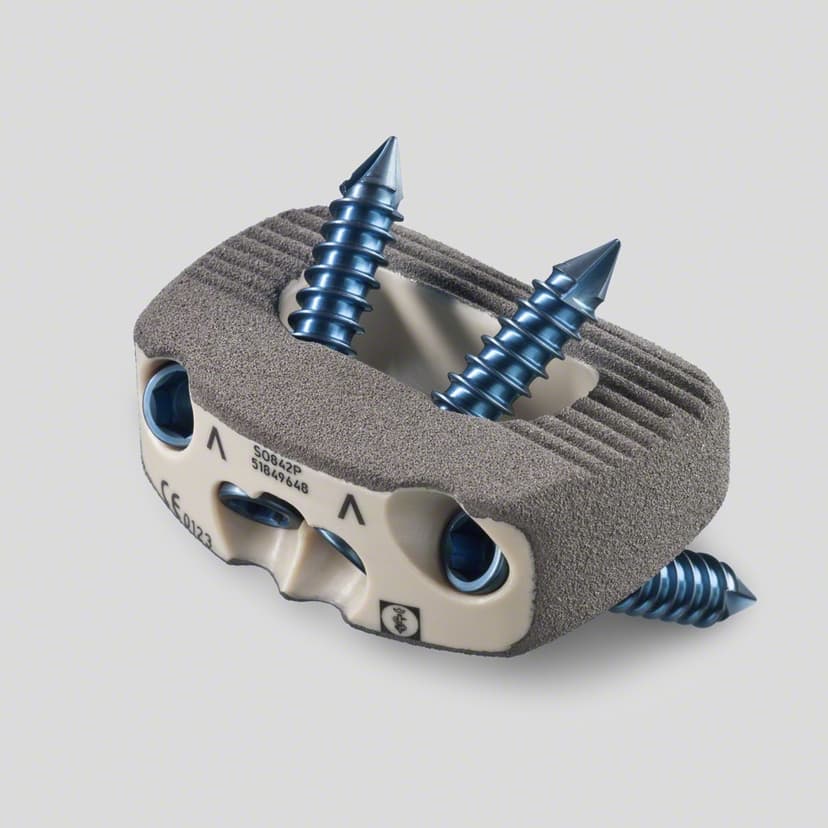

PLASMAPOREXP® coating
Wide variety of implant options
Generous graft window
Surface texturing
Five X-Ray marker pins

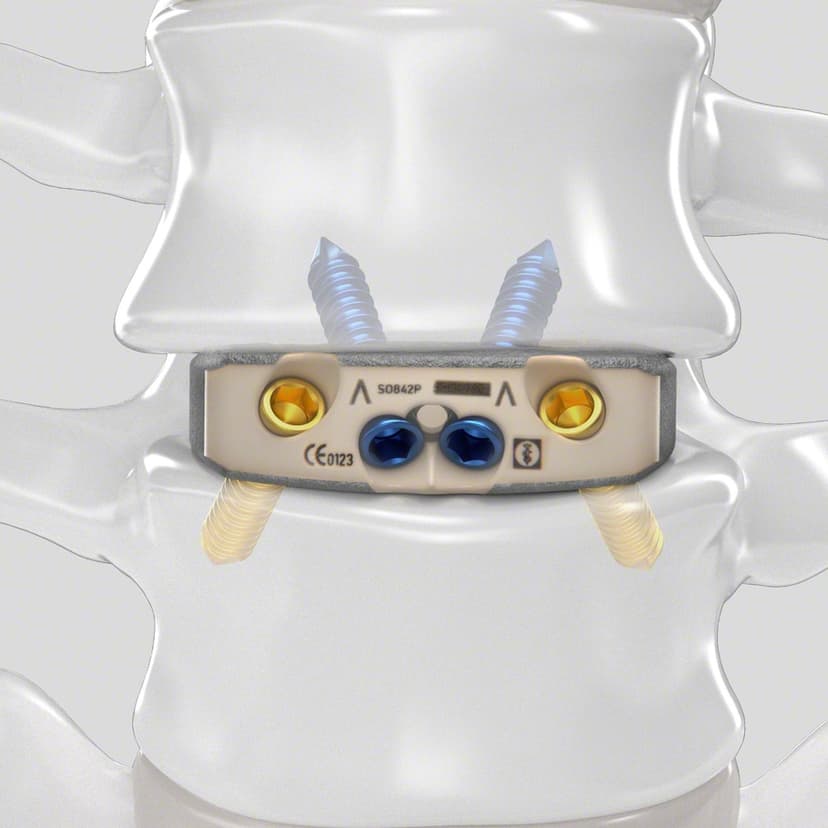

Midline accessibility for screw insertion

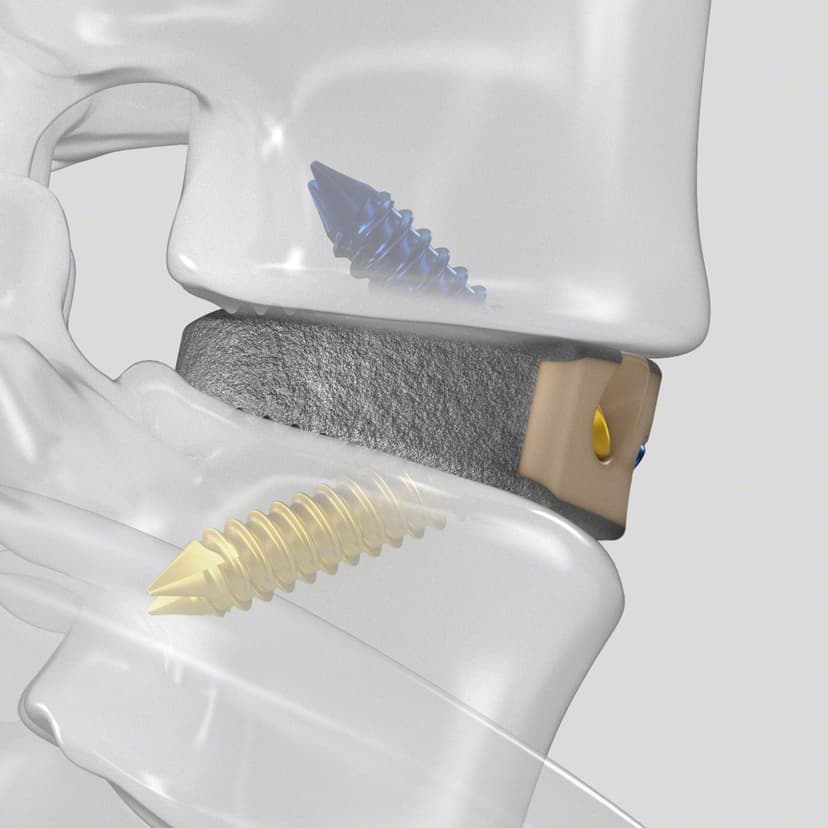

Diverging screw design
Dual locking mechanism
Self-centering, self-drilling and self-tapping bone screws
Comprehensive array of instrumentation
Implant Design
Built on experience Aesculap has many years of experience in applying PLASMAPORE® coatings to titanium orthopaedic and spine implants [4-6] to develop the PLASMAPOREXP® coating for PEEK spinal implants.
Innovative surface enhancing technology PLASMAPOREXP® is an osteoconductive pure titanium coating (Ti/ISO 5832-2) which enables bone ingrowth due to its balanced relation between pore depth, porosity and roughness [1].
Enhanced stability The benefits of PLASMAPOREXP® in combination with the diverging screw design contribute to the implant stability [2, 7].
Implant fit Wide variety of implant sizes are designed to fit with varying patient anatomies.
Accessibility from diverse angles Implant design and flexible instrumentation allow an accessibility from a wide range of angels for instrumentation and hence provide ease in screw insertion.
Simple locking mechanism Integrated dual locking mechanism with single-step activation.

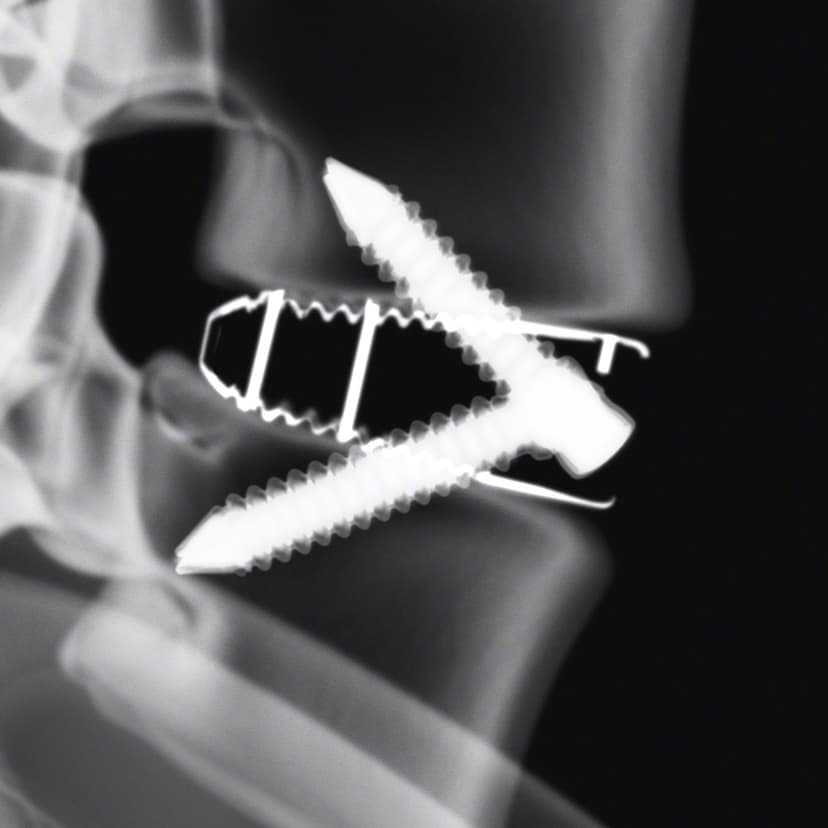

Excellent imaging properties The PLASMAPOREXP® coating together with the X-ray marker pins allow the visualization of implant contour and localization [3].
Intended Use
The ArcadiusXP L® Interbody Fusion System is a stand-alone device intended to be used with four bone screws if no supplement fixation is used to stabilize the lumbar spine through an anterior approach.
The system contains:
Cages in different heights, angles and footprints
Bone screws in different lengths
Levels of anterior lumbar interbody fusion for the indications listed in the instructions for use are from L2-S1.
Note
For further information please see instructions for use TA-No. 015555.
